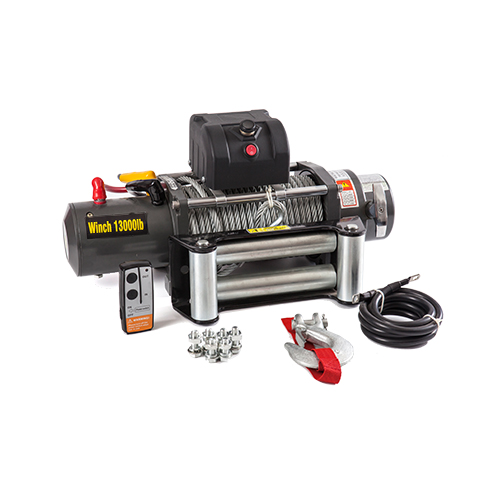

12V/24V HIGH PULLING FORCE OFF ROAD WINCH-SNC13.0X WIRE ROPE

13000lb 4x4 winch, 12V or 24V.
Heavy duty series wound motor, delivers high torque force.
Gears are made of 20CR steel, crafted with cold extrusion and heat treatment, to meet toughest pulling demand.
Bilateral roller brake, load-hold in two directions, offers more installation options.
360°rotating clutch makes engagement and disengagement much easier.
Precision machining transmission shaft lower noises when winching.
Sealed winch body, well working in bad weather.
Every winch is tested on pulling capacity and function.

Contact Us

PRODUCT DETAILS

Specification
Rated line pull 13000lb (5897kg) single line
Motor 6.6hp/4.85kw,series wound 12V
Control Remote switch, 12ft (3.7m) lead
Remote Control Included
Gear train 3 stage planetary
Gear reduction ratio 217:1
Clutch Rotating clutch
Braking Automatic load-holding brake
Drum size Ø2.5″*L8.8″ (Ø63.5mm*L224mm)
Cable Ø9.5mm*26m
Fairlead 4-way roller fairlead
Wireless Remote control Optional
Battery recommended 650 CCA minimum for winching
Battery leads 2 gauge, 72" (1.83m)
Finishing Black, dark grey coating
Overall dimension (L*W*H) 526.3*160*179mm
Mounting bolt pattern 254*114.3mm

13000LBS LINE SPEED AND AMP DRAW (FIRST LAYER)
Line pull lb(kg) Line speed ft/min(m/min) Current(A)
0 35.5(10.82) 67
4000(1814) 15.19(4.63) 198
6000(3310) 12(3.66) 261
8000(3629) 9.84(3.0) 320
9500(4082) 6.59(2.01) 350
11000(4970) 8.07(2.46) 370
13000(5897) 7.15(2.18) 405

13000LBS LINE PULL AND CABLE CAPACITY
Layer of cable 1 2 3 4
Rated line Lbs 13000 9210 8030 6894
pull per layer Kgs 5897 4178 3642 3123
Cumulative Ft 20.3 42.6 72 85.5
Cable capacity M 6 13.2 22.1 26



Weight and Package
Net Weight 35KG
Gross Weight 36KG
Package Foam carton 60x34x25cm
