|Rated line pull||13000lb (5897kg) single line|
|Motor||6.6hp/4.85kw,series wound 12V|
|Control||Remote switch, 12ft (3.7m) lead|
|Gear train||3 stage planetary|
|Gear reduction ratio||217:1|
|Braking||Automatic load-holding brake|
|Drum size||Ø2.5″*L8.8″ (Ø63.5mm*L224mm)|
|Wireless Remote control||Optional|
|Battery recommended||650 CCA minimum for winching|
|Battery leads||2 gauge, 72" (1.83m)|
|Finishing||Black, orange coating|
|Overall dimension (L*W*H)||546*166*246mm|
|Mounting bolt pattern||254*114.3mm|
|13000LBS LINE SPEED AND AMP DRAW (FIRST LAYER)|
|Line pull lb(kg)||Line speed ft/min(m/min)||Current(A)|
|13000LBS LINE PULL AND CABLE CAPACITY|
|Layer of cable||1||2||3||4|
|pull per layer||Kgs||5897||4178||3642||3123|
|Weight and Package|
|Package||Honeycomb carton 60x31x29cm|

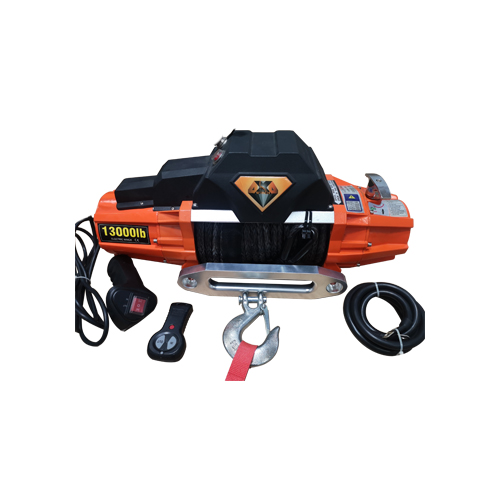

We have strict quality control of raw materials, components and finished products. All custom 4x4 electric winch SC13.0WEX winch orange with black synthetic are delivered to customers after tight inspection and test. With experienced engineers, trained workers and professional sales team, we are sure your every specific request will be satisfied.
Our products are exported to all around the world. Our products have been recognized by our customers for good quality and competitive price. We are devoted to provide more "High Power" products to more customers. Welcome to visit our factory at any time.
We have a strong desire that we can double-win with our customer.
