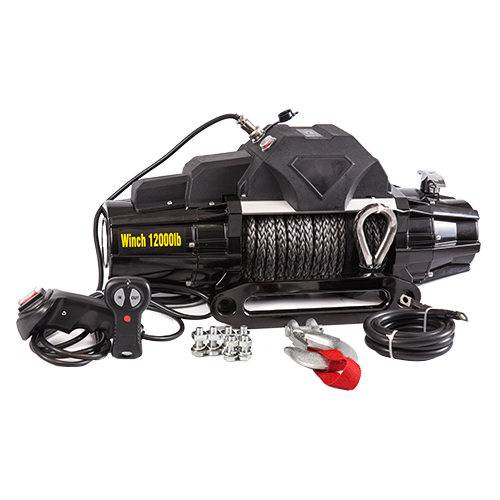

OFF ROAD VEHICLE MOUNTED SC12.0WEX WINCH BLACK WITH BLACK SYNTHETIC

Very popular type, similar with WARN winch
12V and 24V both available.
Heavy duty series wound motor, delivers high torque force.
Gears are made of 20CR steel, crafted with cold extrusion and heat treatment, to meet toughest pulling demand.
Bilateral roller brake, load-hold in two directions, offers more installation options.
360°rotating clutch makes engagement and disengagement much easier.
Precision machining transmission shaft lower noises when winching.
Sealed winch body, well working in bad weather.
Every winch is tested on pulling capacity and function.

Contact Us

PRODUCT DETAILS

Specification
Rated line pull 12000lb (5443kg) single line
Motor 6.6hp/4.85kw,series wound 12V
Control Remote switch, 12ft (3.7m) lead
Remote Control Included
Gear train 3 stage planetary
Gear reduction ratio 217:1
Clutch Rotating clutch
Braking Automatic load-holding brake
Drum size Ø2.5″*L8.8″ (Ø63.5mm*L224mm)
Rope Ø10mm*28m
Fairlead Aluminum hawse
Wireless Remote control Optional
Battery recommended 650 CCA minimum for winching
Battery leads 2 gauge, 72" (1.83m)
Finishing Black, orange coating
Overall dimension (L*W*H) 546*166*246mm
Mounting bolt pattern 254*114.3mm

12000LBS LINE SPEED AND AMP DRAW (FIRST LAYER)
Line pull lb(kg) Line speed ft/min(m/min) Current(A)
0 34.4(10.82) 67
2000(907) 20.6(6.28) 131
4000(1814) 15.19(4.63) 198
6000(3310) 12(3.66) 261
8000(3629) 9.84(3.0) 320
10000(4536) 8.07(2.46) 350
12000(5443) 7.15(2.18) 390

12000LBS LINE PULL AND CABLE CAPACITY
Layer of cable 1 2 3 4
Rated line Lbs 12000 9210 8030 6894
pull per layer Kgs 5443 4178 3642 3123
Cumulative Ft 21.3 40 72 92
Cable capacity M 6.5 12 22 28

DIMENSIONS(mm)



Weight and Package
Net Weight 26KG
Gross Weight 28KG
Package Honeycomb carton 60x31x29cm
