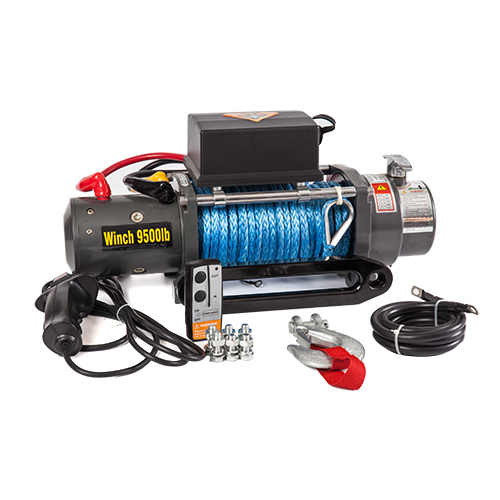

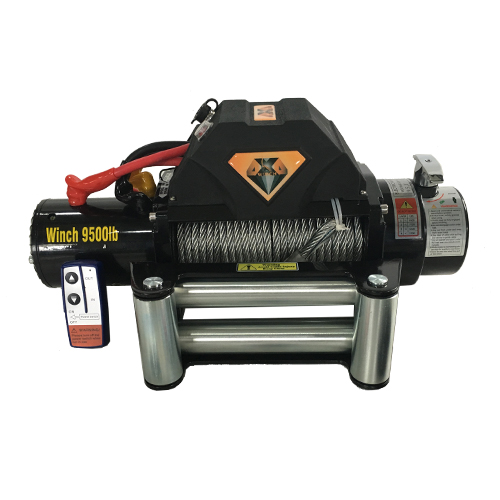

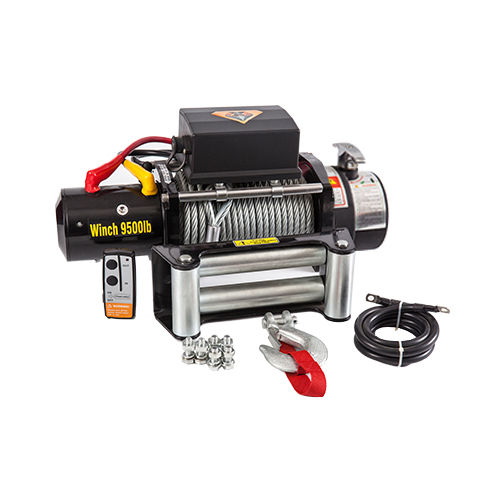

9500lb 4x4 winch, 12V or 24V.
Heavy duty series wound motor, delivers high torque force.
Gears are made of 20CR steel, crafted with cold extrusion and heat treatment, to meet toughest pulling demand.
Bilateral roller brake, load-hold in two directions, offers more installation options.
360°rotating clutch makes engagement and disengagement much easier.
Precision machining transmission shaft lower noises when winching.
Sealed winch body, well working in bad weather.
Every winch is tested on pulling capacity and function.
|Rated line pull||9500lb (4309kg) single line|
|Motor||6.0hp/4.5kw,series wound 12V|
|Control||Remote switch, 12ft (3.7m) lead|
|Gear train||3 stage planetary|
|Gear reduction ratio||217:1|
|Braking||Automatic load-holding brake|
|Drum size||Ø2.5″*L8.8″ (Ø63.5mm*L224mm)|
|Wireless Remote control||Optional|
|Battery recommended||650 CCA minimum for winching|
|Battery leads||2 gauge, 72" (1.83m)|
|Finishing||Black, dark grey coating|
|Overall dimension (L*W*H)||526.3*160*179mm|
|Mounting bolt pattern||254*114.3mm|
|9500LBS LINE SPEED AND AMP DRAW (FIRST LAYER)|
|Line pull lb(kg)||Line speed ft/min(m/min)||Current(A)|
|9500LBS LINE PULL AND CABLE CAPACITY|
|Layer of cable||1||2||3||4|
|pull per layer||Kgs||4309||3230||3025||2595|
|Weight and Package|
|Package||Foam carton 60x34x25cm|
We have strict quality control of raw materials, components and finished products. All custom Vehicle mounted off road winch-SC9.5WX synthetic rope are delivered to customers after tight inspection and test. With experienced engineers, trained workers and professional sales team, we are sure your every specific request will be satisfied.
Our products are exported to all around the world. Our products have been recognized by our customers for good quality and competitive price. We are devoted to provide more "High Power" products to more customers. Welcome to visit our factory at any time.
We have a strong desire that we can double-win with our customer.
