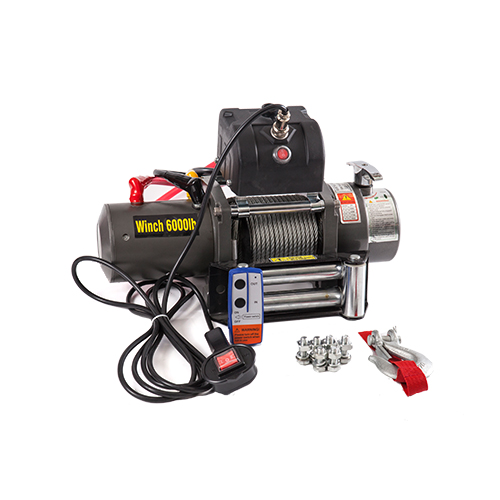

HIGH PRESSURE FORCE VEHICLE MOUNTED OFF ROAD WINCH-SNC6.0X WIRE ROPE

6000lb winch, 12v or 24v, with steel wire or synthetic rope
Heavy duty series wound motor, delivers high torque force.
Gears are made of 20CR steel, crafted with cold extrusion and heat treatment, to meet toughest pulling demand.
Bilateral roller brake, load-hold in two directions, offers more installation options.
360°rotating clutch makes engagement and disengagement much easier.
Precision machining transmission shaft lower noises when winching.
Sealed winch body, well working in bad weather.
Every winch is tested on pulling capacity and function.

Contact Us

PRODUCT DETAILS

Specification
Rated line pull 6000lb (3310kg) single line
Motor 5.3hp/4kw,series wound 12V
Control Remote switch, 12ft (3.7m) lead
Remote Control Included
Gear train 3 stage planetary
Gear reduction ratio 217:1
Clutch  Rotating clutch
Braking Automatic load-holding brake
Drum size Ø2.5″*L5.37″ (Ø63.5mm*L136.5mm)
Cable Ø7.2mm*20m
Fairlead 4-way roller fairlead
Wireless Remote control Optional
Battery recommended 650 CCA minimum for winching
Battery leads 2 gauge, 72" (1.83m)
Finishing Black, dark grey coating
Overall dimension (L*W*H) 427*160*214mm
Mounting bolt pattern 166.5*114.3mm

6000LBS LINE SPEED AND AMP DRAW (FIRST LAYER)
Line pull lb(kg) Line speed ft/min(m/min) Current(A)
0 22(6.8) 60
2000(907) 11.5(3.5) 124
4000(1814) 12(3.6) 180
6000(3310) 8.85(2.64) 220

6000LBS LINE PULL AND CABLE CAPACITY
Layer of cable 1 2 3
Rated line Lbs 6000 4280 3200
pull per layer Kgs 3310 1868 1495
Cumulative Ft 24.6 52.5 65.6
Cable capacity M 7.5 16 20

DIMENSIONS(mm)

Weight and Package
Net Weight 25KG
Gross Weight 26KG
Package Foam carton 50x34x25cm
